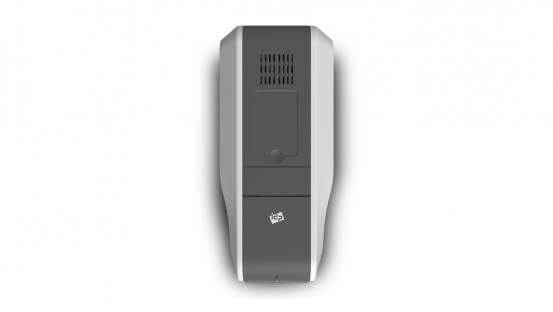

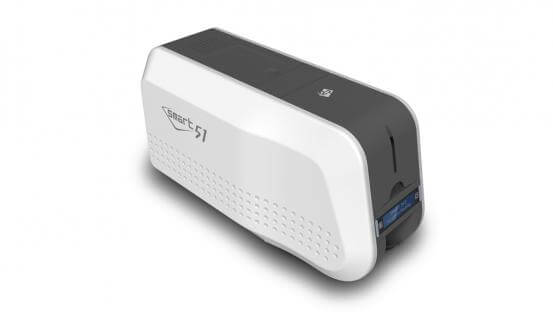

Smart 51S Single Sided Printer

Reliable single sided ID card printer for small to mid-sized business. IDP’s SMART-51S printer will produce full-color or monochrome cards reliably for years. Its time-test design provides high-speed printing, excellent image reproduction and cost savings. The SMART-51S offers a wide range of optional features including Ethernet, smartcard encoding, and field upgradeable dual and lamination modules.

• Color & Mono Single Side Printing • Print Speed: Max. 17 sec/card (YMCKO) • 300dpi with Edge to Edge Printing • 2 Lines LCD with 2 LED Buttons for Front Operation • Support of Transparent Cards • Low Cost Security with UV Printing • Installable Encoders: MS, Contact & Contactless • Upgradable Modules: Flipper, Laminator & Ethernet

SMART ID ensures accurate card issuance and data management with your SMART series of printers. This application offers simple design tools to allow the user to create a truly customized card within minutes. SMART ID offers advanced user tools such as database connections, camera and signature scanners plug-in support, as well as smart card reading and encoding. - Design and print (Image, Photo and Text) - 1D & 2D Barcode printing - Auto portrait (Auto face detection, adjustment of size & position) - Printing of sequential numbers - Card design templates - Plug-in for supporting external devices (Sign pad, Camera, Scanner) - Convenient card issuance and data management - Magnetic stripe (MS), contact & contactless smart card encoding by using plug-in program

The SMART series printers come with highly effective and tested physical and electronic security features. - PASSWORD verification with administrator and user authentications - PC AUTHENTICATION locks the SMART printer to a specific PC to render it useless if stolen - DATA ENCRYPTION over USB and SSL (secure socket layer) over Ethernet - PHYSICAL LOCKS are standard on the SMART-70 and an optional feature on the SMART-51 Series

The SMART series offers “single-wire” printing and encoding. - The SMART Ethernet module can not only print over your network, but can also be configured to encode magnetic stripes, contact IC chips and contactless smart cards over your network - The SMART Ethernet module can be configured to accept “open card protocol” print commands for direct printing without a driver.

Printing

• Print Mode

  Single Sided

• Print Type

  Direct Dye-Sublimation

• Print Area

  Edge to Edge

• Resolutions

  300dpi

• Dual Side Printing

  Option (with Flipper)

Card

• Card Feeding

  Automatic

• Card Size

  ISO CR80 or ISO CR79 (Option-Factory installed)

• Card Thinkness

  0.38mm (15mil) ~ 1.0mm (40mil)

• Card Type

  PVC, PET, Composite PVC

Print Speed

• Monochrome

  5 sec./card (720 cards/hour)

• YMCKO

  Max. 17 sec./card (212 cards/hour)

Capacity

• Input Hopper: Card

  100 Cards / 200 Cards with cover open

• Output Hopper: Card

  Front : 40 Cards / Rear : 100 Cards (Optional Rear-side Stacker)

System

• Memory

  64MB RAM

• Interface

  2 Line LCD / 2 LED Buttons

• Supported Platforms

  Microsoft Windows 7/ 8 /10, Mac OS, Linux

• Communication

  USB, Ethernet (Option)

• Power Supply

  Free Voltage (AC 100/ 220V, 50~60Hz)

• Power Consumption

  48W

• Temperature

  15~35?

• Humidity

  35~70%

Security

• Physical Lock

  Input Hopper & Ribbon (Option)

• Station Itself

  Kensington Lock (Option)

Dimensions

• Milimeter

  165 (W) x 390 (L) x 210 (H)

• Inch

  6.5 (W) x 15.4 (L) x 8.3 (H)

Weight

• Kg/Lbs

  4.5 / 10

Encoding Option

• Magnetic

  ISO 7811 (Track I, II, III Read/ Write, HiCo/ LoCo), JIS II

• Contact

  ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card

• Contactless

  ISO 14443 (Type A/ B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica

Certifications

• Certifications

  CB, CE, FCC, KC, CCC
